This is the most popular 10" retractable replacement trash can chute hydraulic closer in the shooting industry. Mainly for garbage and linen shot doors However, it is often used for garbage shooting doors. The thick silver aluminum tube of the cylinder is 10" long and 1" thick. The thin rod is 5/16" thick and is placed in the retracted position by default. When the door is fully open, the shaft extends further 5 1/2" and is a total of 17 1/2" when fully extended.

Hardware parts included: 1 piston closure, 1 pivot pin (assembled), 1 bracket (pre-assembled), 1 clevis nut (lost to install). [ See pictures and you will receive the same product and parts ]

Fits the following hinged doors: bottom (BH) and side hinges (SH) stainless steel doors

Applications: Trash, debris, debris, laundry, linen, recycle UL rated intake door

Fits doors of the following sizes:

15" W x 18" H (most popular)
18" W x 18" H
21" W x 18" H
21" W x 21" H
24" W x 24" H

Compatibility: 35% of industry doors such as Acme Chutes, Action Chutes, 21st Century Chutes, Chutes Doctor, Chutes International Manufacturing, Cutler Chutes, US Chutes, Valiant Chutes, Western Chutes, Wilkinson Hi Rise, etc.

Measure your current trash door to ensure a perfect fit. Please make sure it fits one of the above doors.

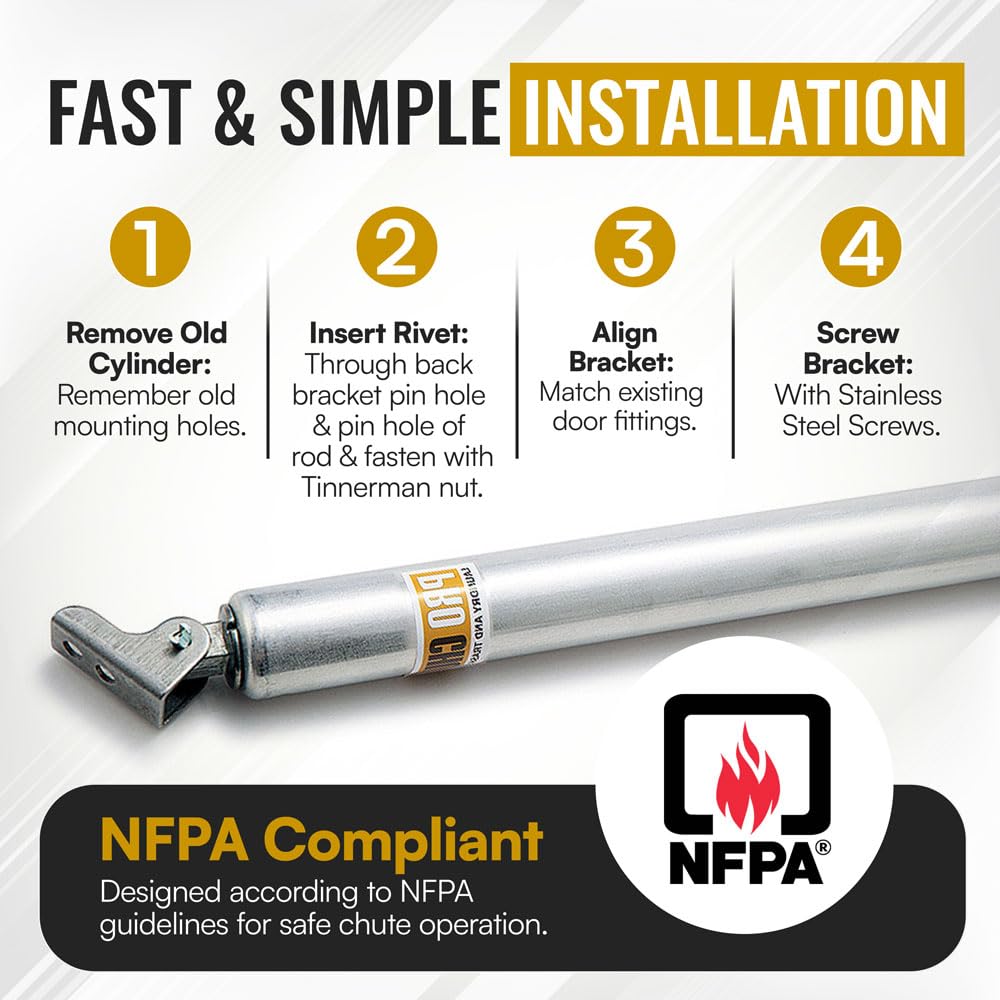

To replace your current trash can shoot door closer, check your existing hydraulic pressure to ensure that the pin fittings and brackets are on both ends.

Installation Test: Door latch passes through, coil spring absorbs spring and moistens to prevent injury.

Installation Type	Screw-In
Recommended Uses For Product	Garbage, Garbage, Wash, Linen, Recycled UL Listed Intake Door
Specification Met	UL
Size	10 Inch
UPC	740931855026
Manufacturer	Pro Chutes
Model Number	trash-chute-hydraulic-door-closer-10
Product Dimensions	2.54 x 2.54 x 30.48 cm; 335.66 g
Power Source	Hydraulic type
Voltage	120 Volts
Included Components	1 Hydraulic Closure, 1 Bracket, 1 Clevis and 1 Pin
Are Batteries Included	No

Trash Can Chute Door Hydraulic Closer 10" Retractable Piston Pump for Laundry or Garbage Door with Bottom and Side Hinges
