𝐒𝐄𝐀𝐌𝐋𝐄𝐒𝐒 𝐍𝐀𝐂𝐒 𝐃𝐂 𝐂𝐇𝐀𝐑𝐆𝐈𝐍𝐆 𝐅𝐎𝐑 𝐍𝐎𝐑𝐓𝐇 𝐀𝐌𝐄𝐑𝐈𝐂𝐀𝐍 𝐄𝐕𝐒:

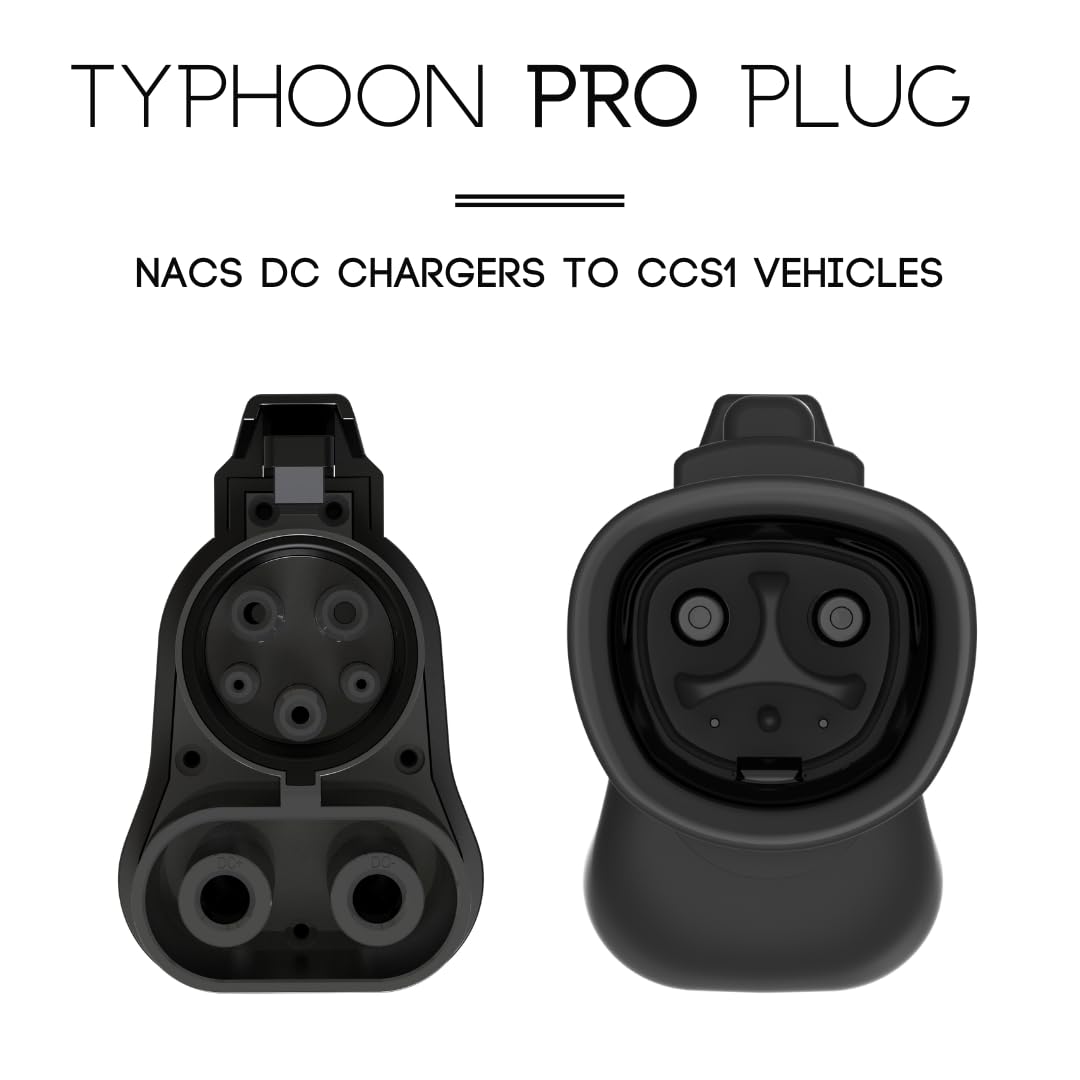

The A2Z EV NACS to CCS1 Adapter is the ultimate solution for North American electric vehicle owners who need to access NACS DC fast charging stations. This innovative adapter makes your vehicle compatible with any NACS DC charger, expanding your options for fast charging stations. The A2Z EV Adapter ensures seamless charging with safety and reliability, compatible with the following vehicles: Ford, Rivian, GM, Volvo, Polestar, Nissan, Mercedes-Benz, Hyundai, Genesis, Lucid, KIA, Honda, or Acura.

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒:
Rated Amperage: 500A.
Rated Voltage: 100~1000VDC.
Conductor Material: Silver plated copper.
Contact resistance: 5 mΩ.
Shell Material: UL-94-V0 PA66.
Operating Temperature: -30°C to 50°C.
Security: Dual temperature sensor switch.
Sealing gasket: Silicon rubber.

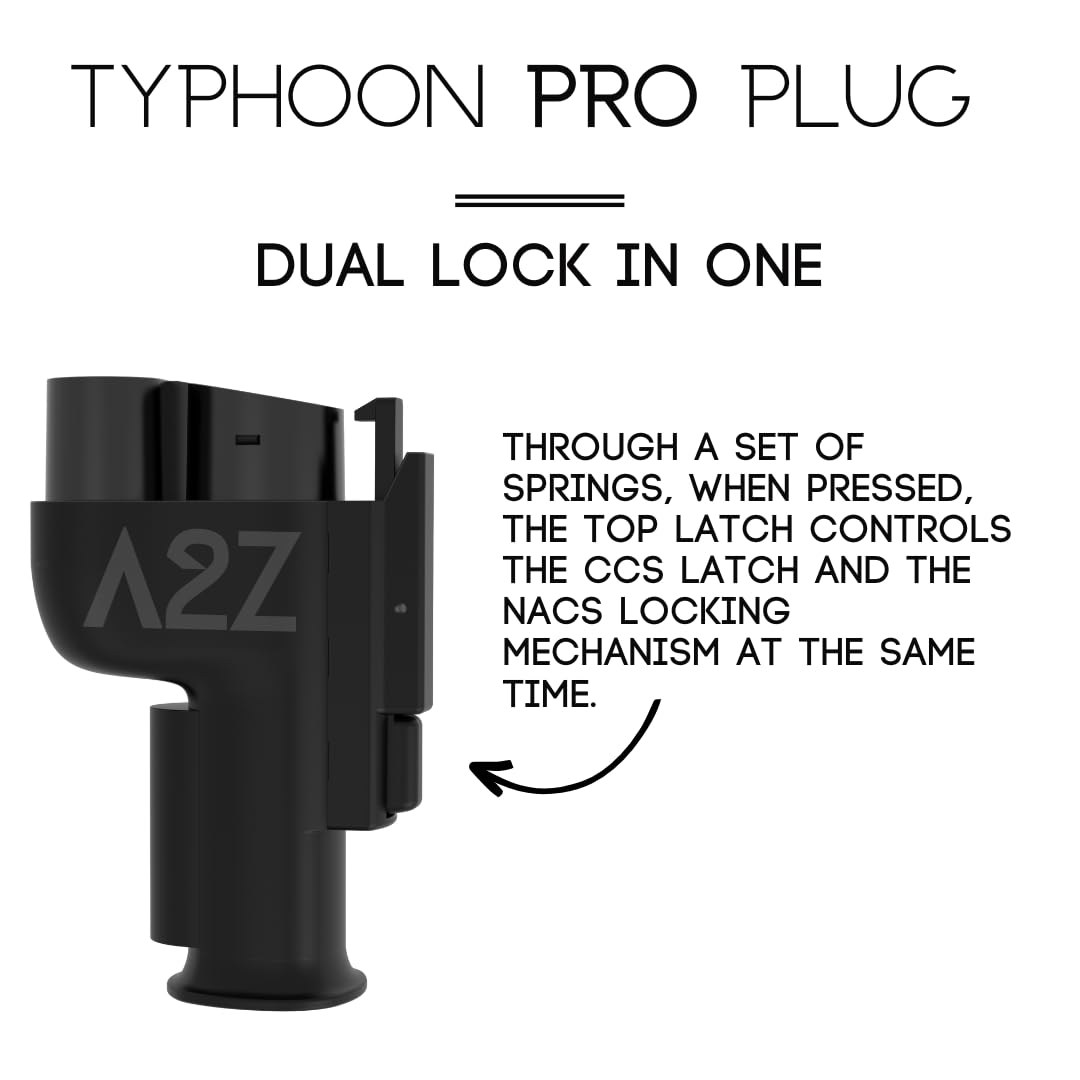

Locking: Dual locking mechanism in one.
Security: Locks into the vehicle while charging (if the vehicle incorporates a charge port locking pin).
Degree of protection: IP54 (mating) & IP67 (enclosing).
Built for All-Weather Performance

For added safety, the A2Z Typhoon Plug incorporates two temperature sensor switches. The first sensor derates the charging process upon reaching a certain temperature, while the second sensor halts charging, the temperature are strategically placed within the adapter. Charging can resume once the temperature normalizes and the adapter is reconnected. It's worth noting that during real-life testing, thermal shutdown was never reached.

Manufacturer	A2Z EV
Brand	A2Z EV
Model	A2Z EV Typhoon Pro
Item Weight	4.1 pounds
Package Dimensions	7 x 5 x 3 inches
Manufacturer Part Number	NC1V2072485X2DC

A2Z EV NACS Charger to CCS1 Vehicle - DC , The Typhoon Pro Plug - Level 3 DC Charging Station Compatible with Superchargers Only V3 and V4 - Fast EV Charger Adapter
